BORN OUT OF BOREDOM
digital presentation
digital presentation
Hochschule Trier
2020
2020
individual work

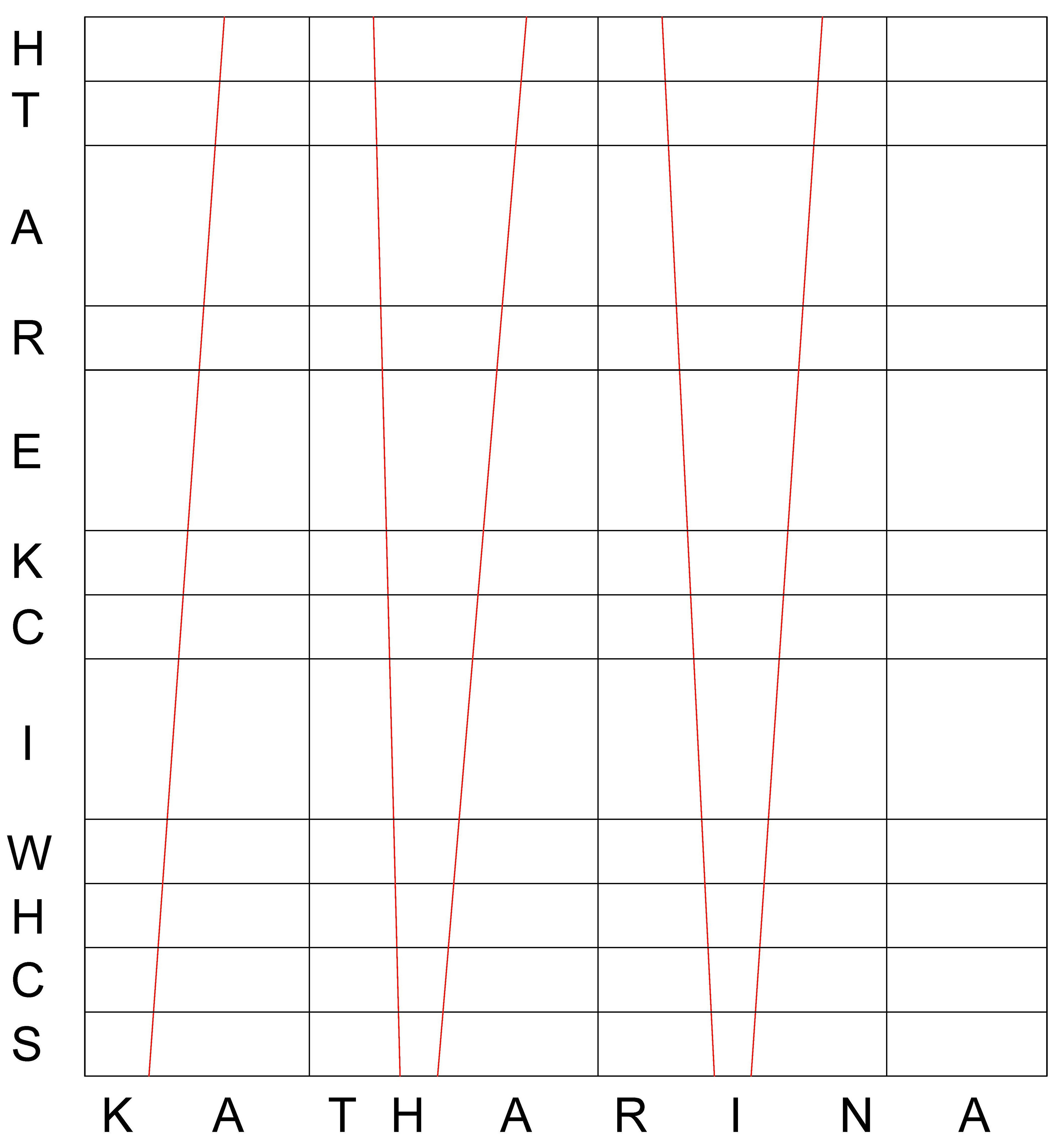

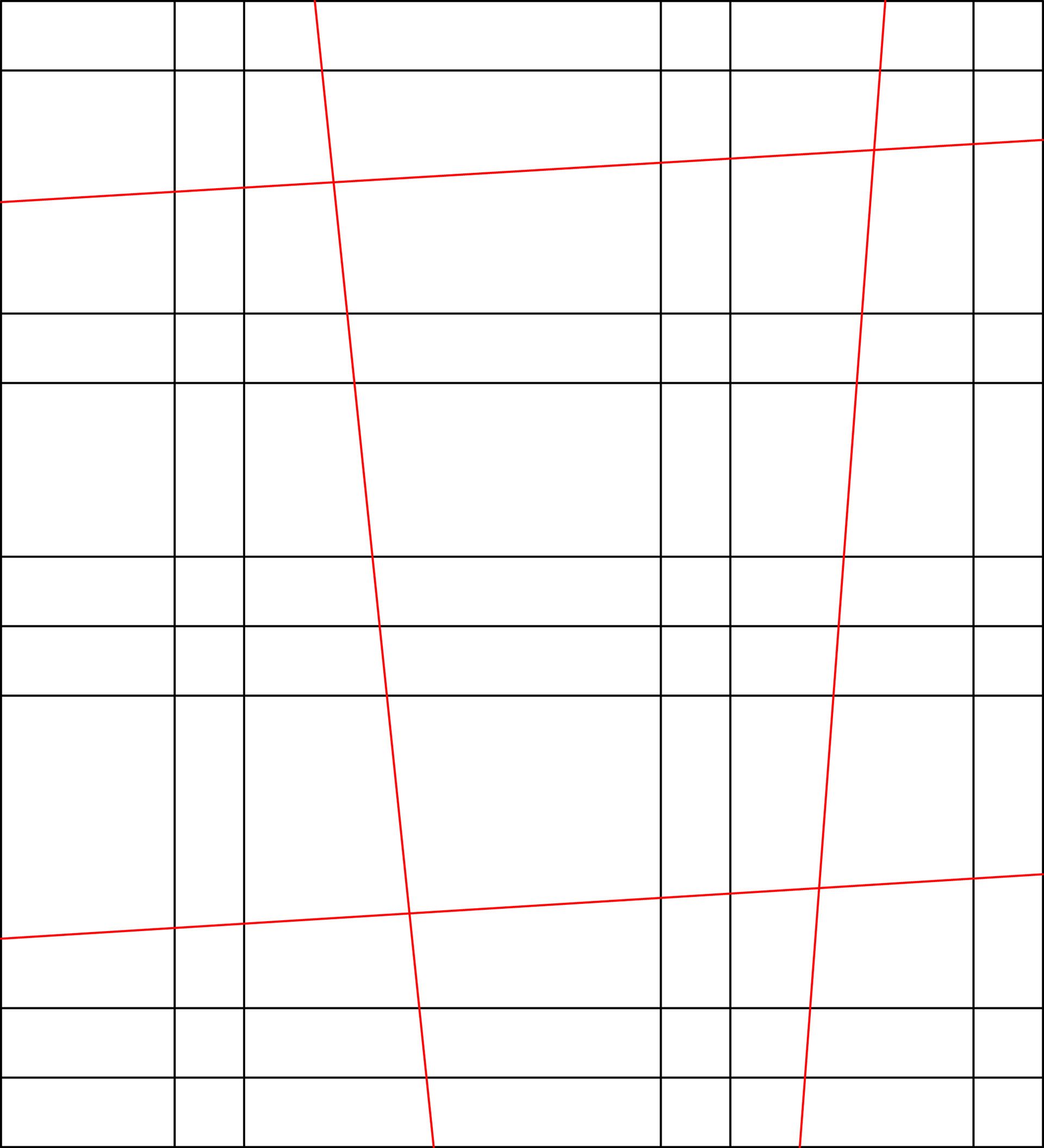

creating a base grid for a plan
using grasshopper (visual programming editor) to model and geometrically arrange columns on the grid. creation of asymmetrical truncated pyramids.

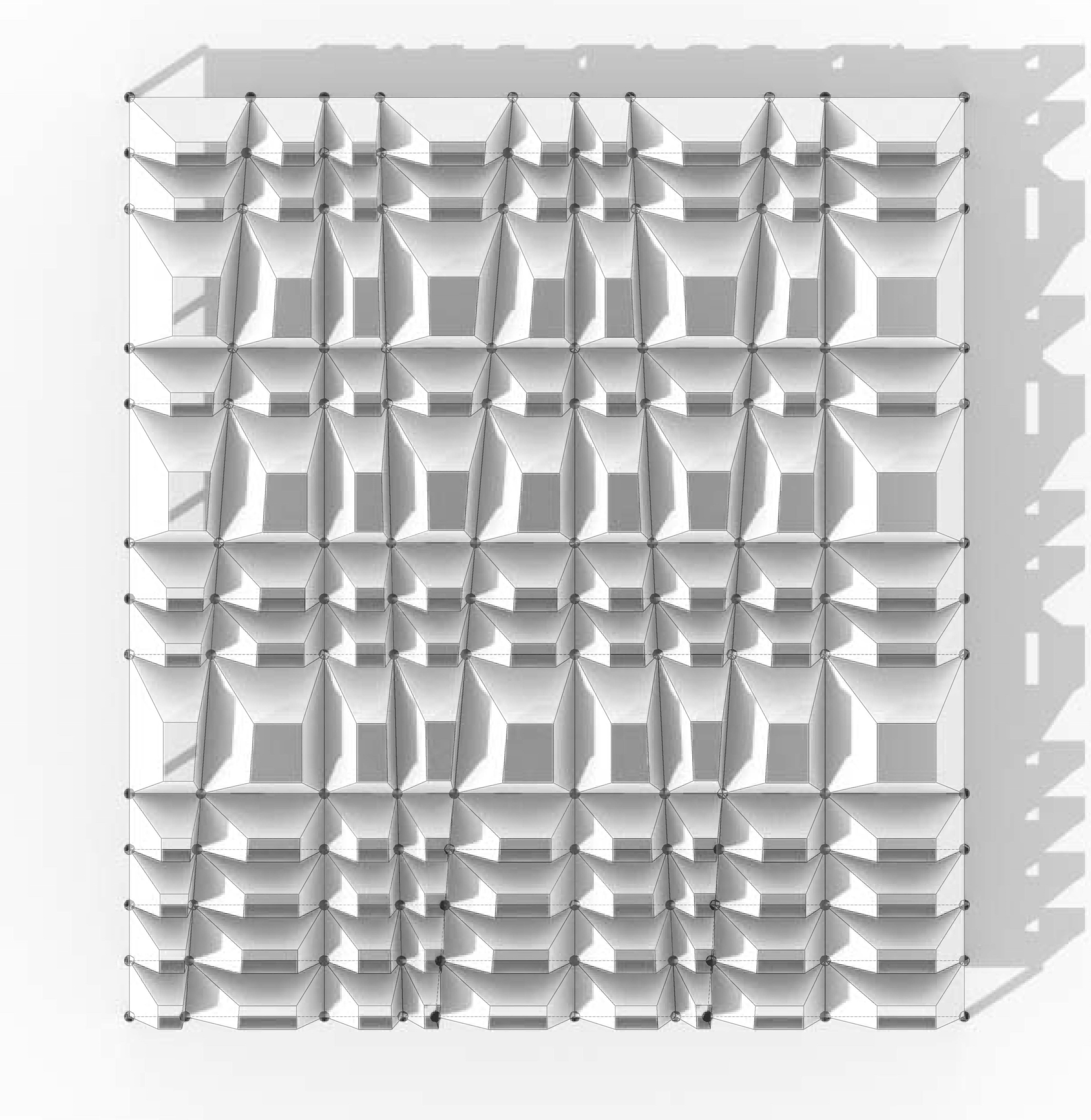

Rendering + line drawing of the preliminary rood plan
A very striking for its appearance
design element are
the high rooms, which with their
characteristic light chimneys
protrude beyond the roof.
They are also located on the
Floor plan grid.
design element are
the high rooms, which with their
characteristic light chimneys
protrude beyond the roof.
They are also located on the
Floor plan grid.

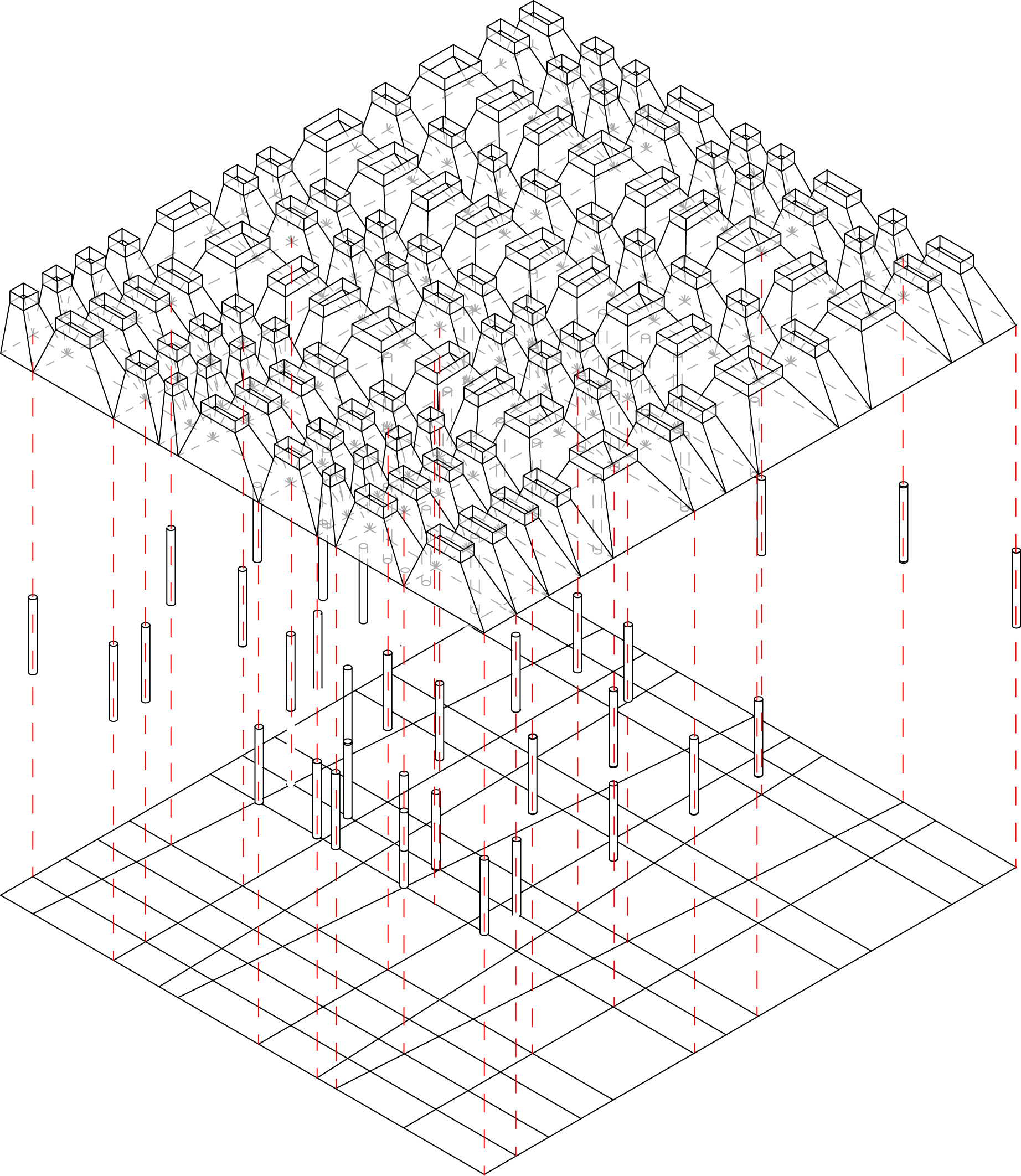

Axonometry of the constructive framework.
Redefining the systematically generated grid to specify the rooms with the light chimneys.

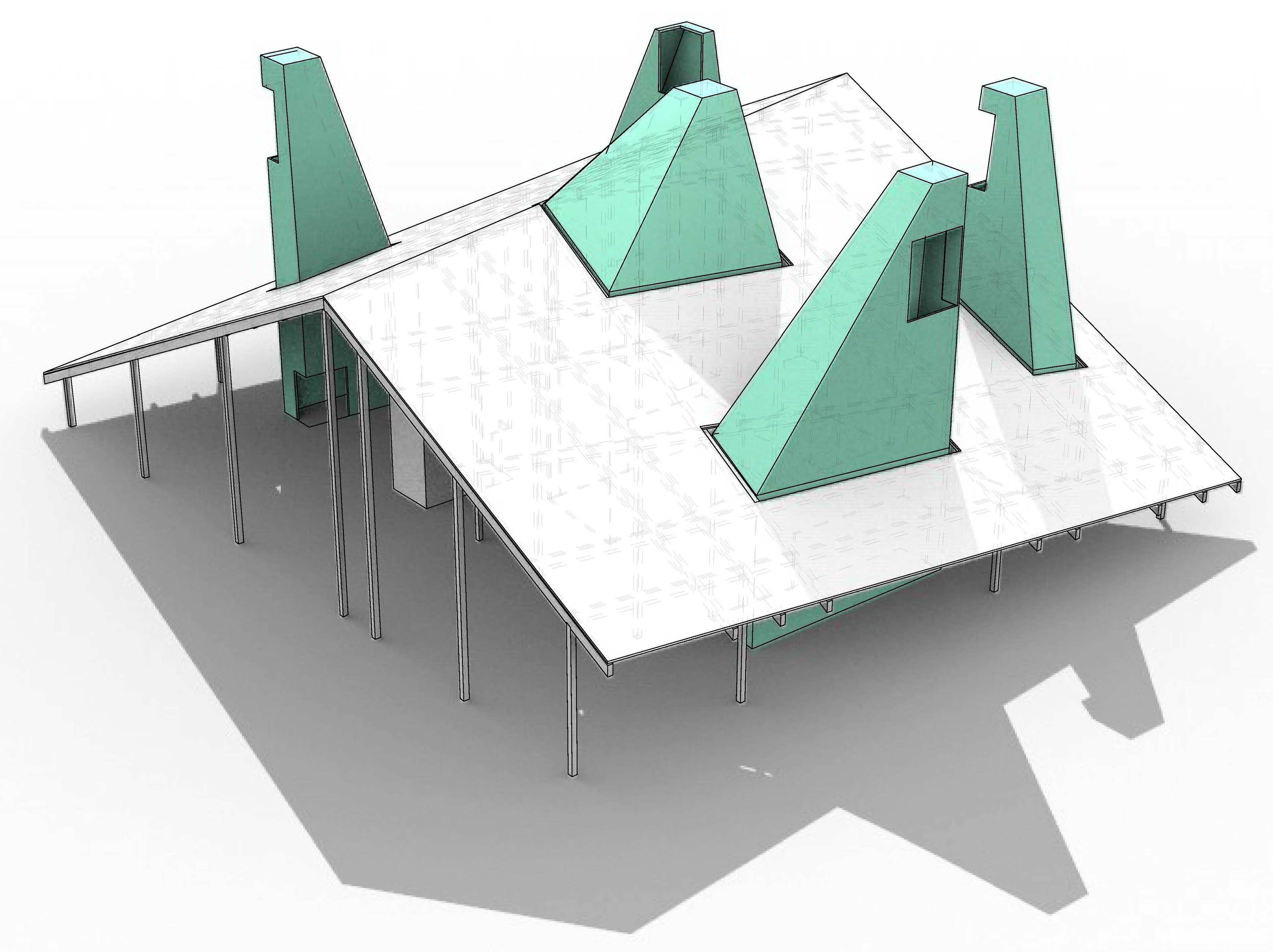

Isometric top- and bottom view of the building. Visualisation of the rooms with the light chmineys.
Is

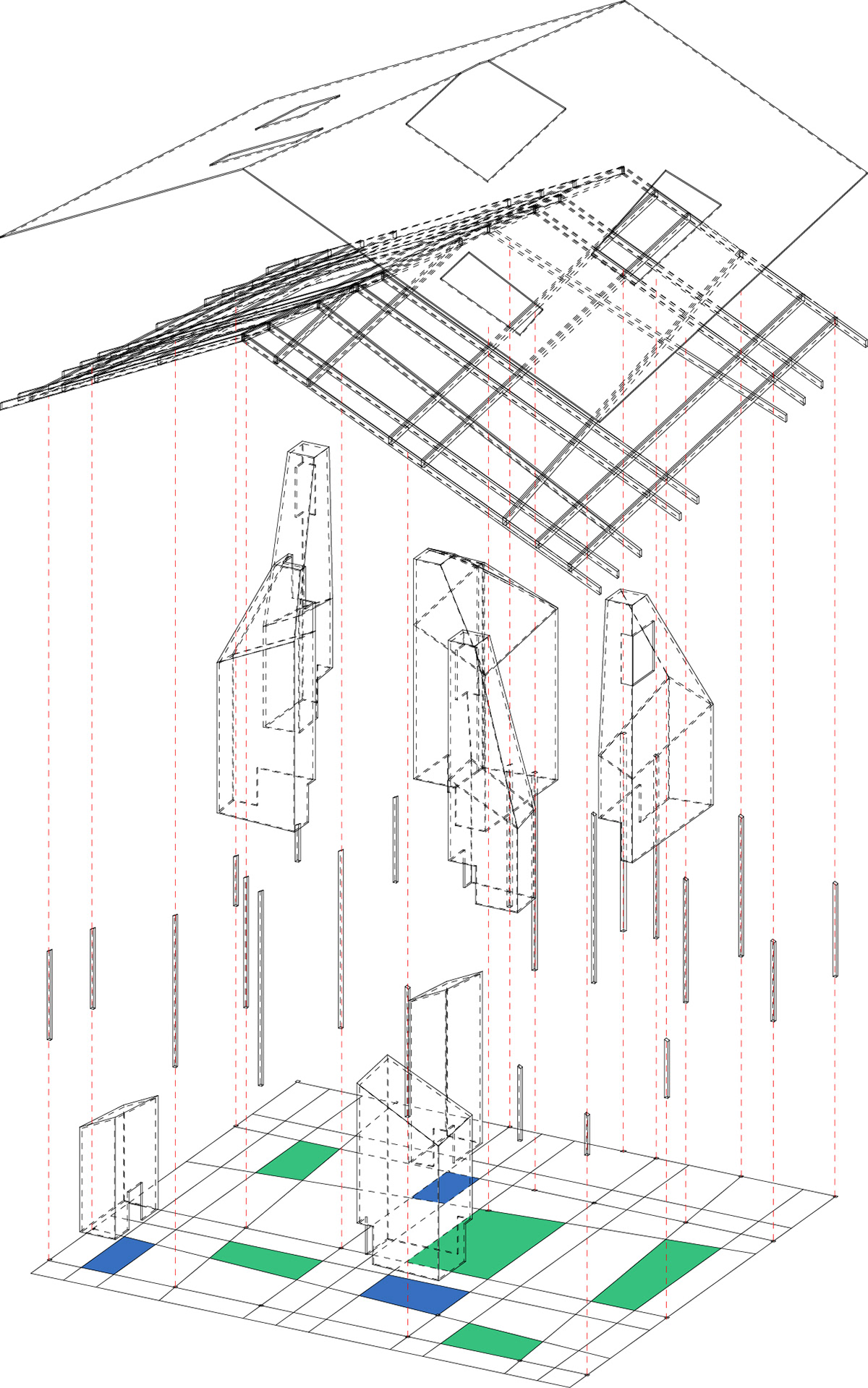

exploded axonometric draving - illlustrating the different elements of the model and defining their position for better understanding.
Born out of boredom - suburban neighborhood in Southern California, USA
